How to Deploy VM in Hyper V step by step

 VM deployment in Hyper V cluster step by step

Login to Hyper V server -> Open failover cluster Manager

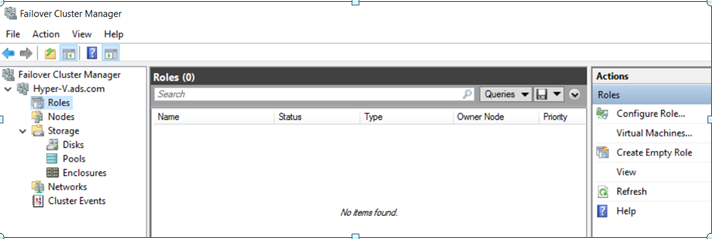

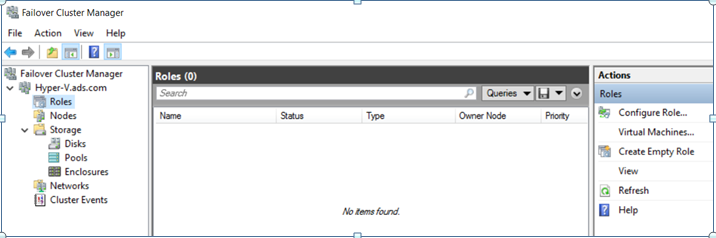

Select Roles -> Click on Virtual Machine

Select node from the list where you want to deploy VM

Click Next

Enter VM Name -> check mark on Store the virtual machine in a different location box

Browse and assign ClusterStorage path -> Select Volume -> Create folder

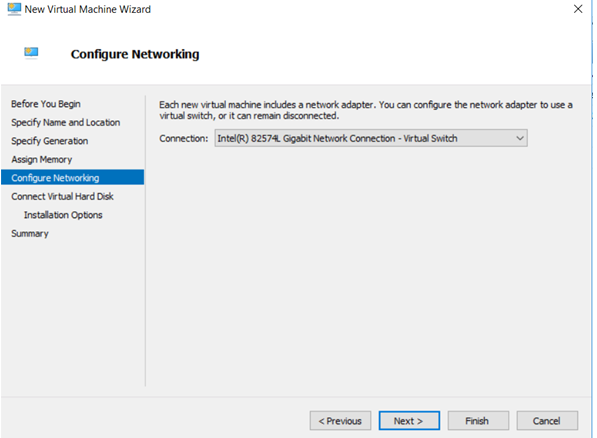

Select Virtual switch

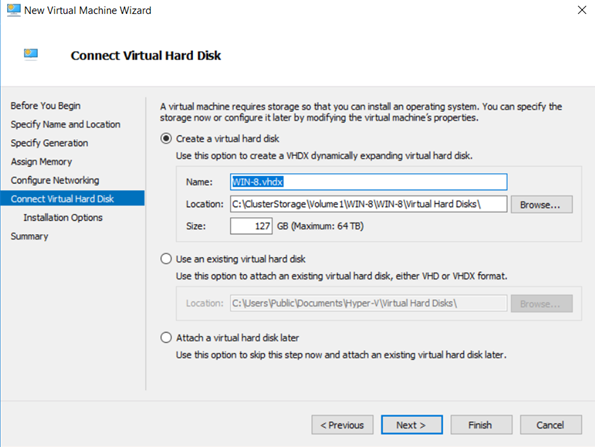

Give VM Name and assign Disk size

Click finish

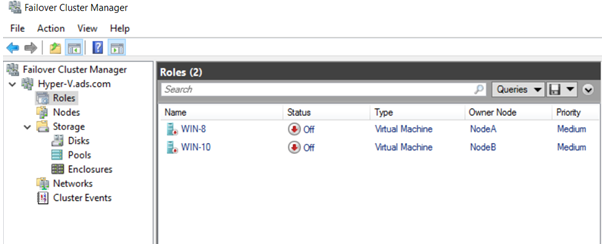

Click Finish

How to configure Failover cluster step by step

 Configure Failover cluster step by step

Now login to server with administrator privilege account or delegate user account to create computer object and update DNS entry and login with that ID.

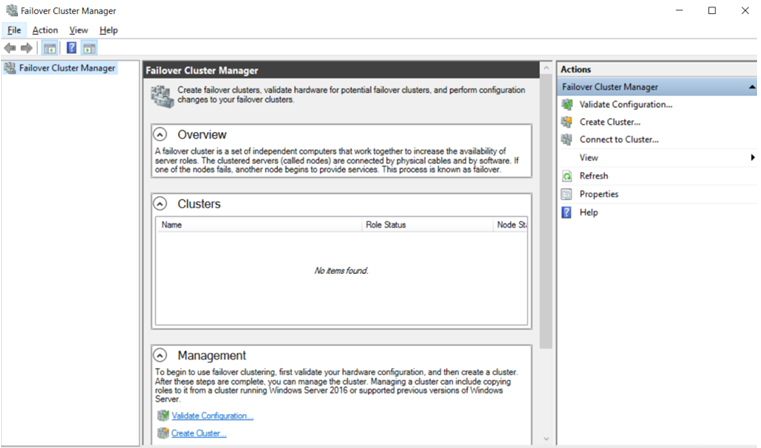

Open failover cluster manager

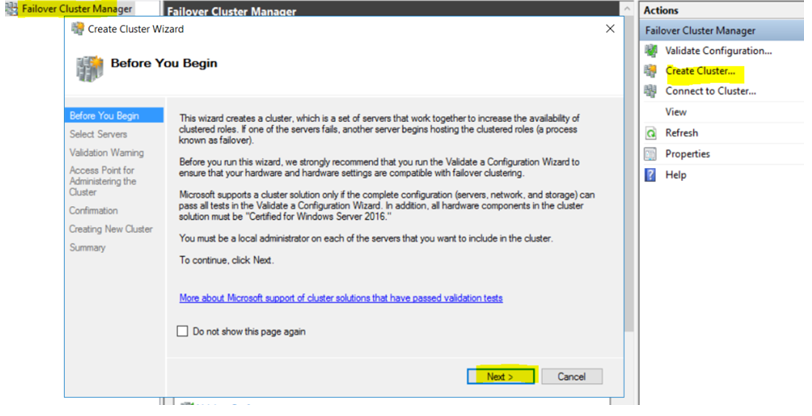

Click on Create Cluster

Enter both nodes Name and click Add -> Next

Select Run all tests ->Next

Now  validation will start for all HW and Software installed in both nodes

Validation is in progress

Check mark on create the cluster now using the validated node

Give cluster Name and assign IP address.

Check mark on add all eligible storage to the cluster -> It's up to you, you can select storage latter as well.

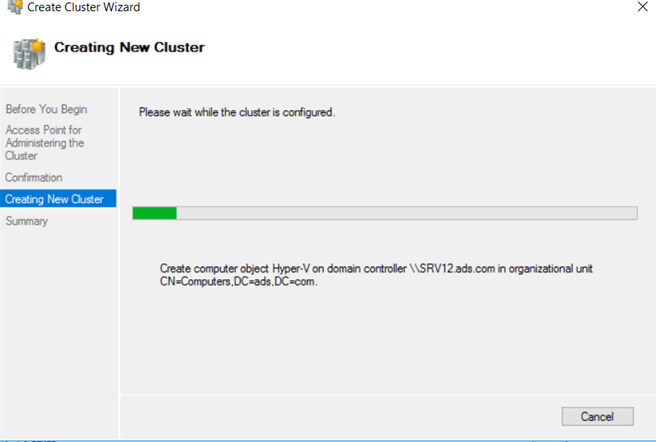

Cluster creating in progress

Click finish



How to install windows cluster role step by step

 How to install cluster features

Login to server -> Open server manager ->click on add Roles and features

Select Role-based or feature-based installation -> Next

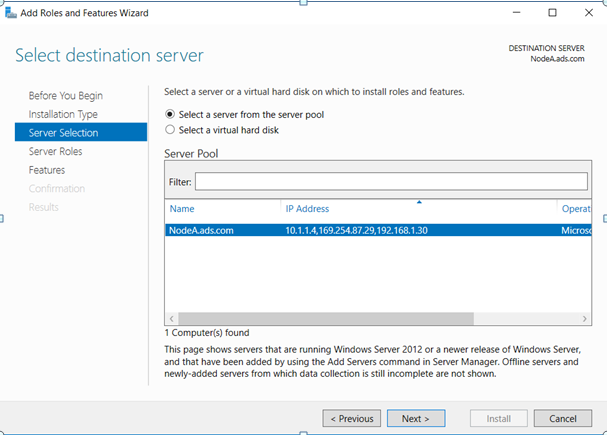

Select server from the pool

Don't select anything click next

Select failover cluster -> check mark on include management tools -> click on Add features

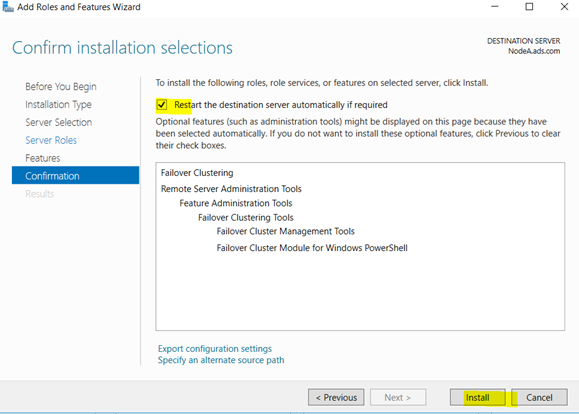

Select restart the destination server automatically if required

Do the same on both nodes

How to connect iSCSI disk in client machines

 How to connect iSCSI disk in client machines

Login to client machine -> Open iSCSI initiator

Enter iSCSI server IP -> click quick connect

Select the iqn that you want to connect and click connect

Do the same on other nodes as well

========================

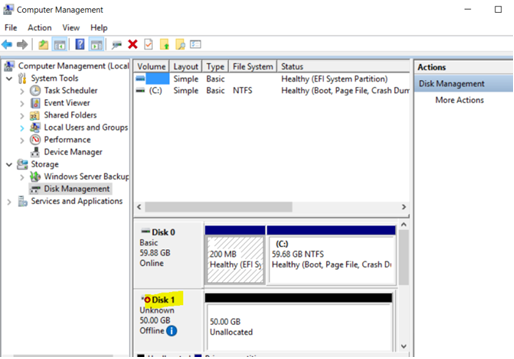

Open disk management -> Right click and bring it online

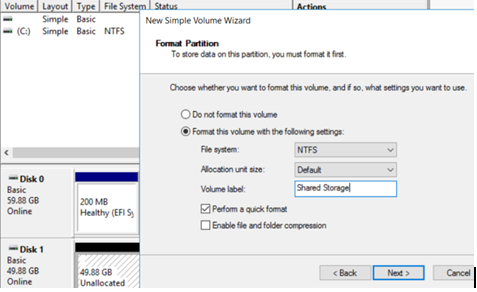

Right Click and Initialise it-> Create new volume give Volume label

Now login to other node -> Right click and bring it online

How to create iSCSI disk and assign access to initiator step by step



How to create iSCSI disk and assign access to initiator

Login to server ->

Open Server Manager and select iSCSI

Right click and select new iSCSI Virtual Disk

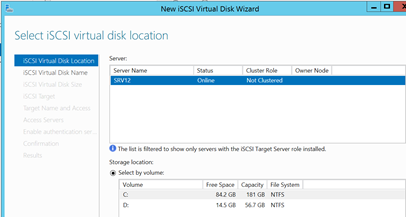

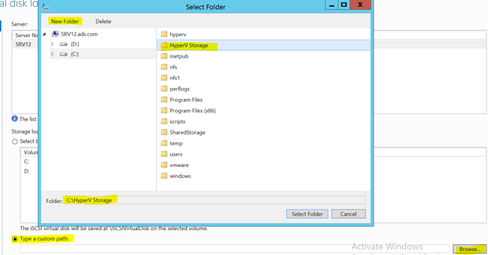

Check mark on Type a custom path -> Browse -> select path and create folder -> Select folder

Check mark on Type a custom path -> Browse -> select path and create folder -> Select folder

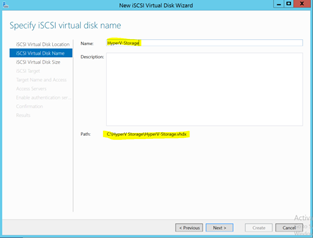

Click next -> Give name -> Next

Assign disk size -> select Dynamically expanding -> Next

Click New iSCSI target

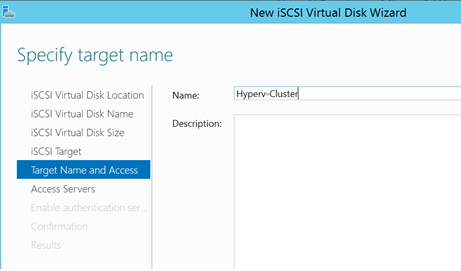

Give Name

Click Add -> select enter a value for the selected type -> select IP Address from drop down -> enter iSCSI initiator IP.

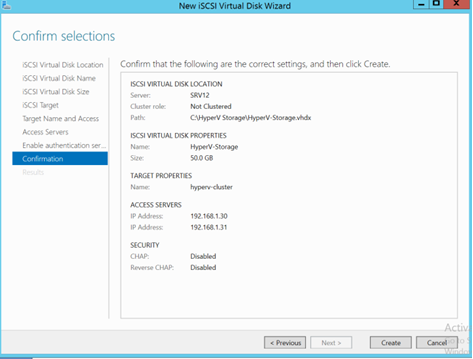

Click create

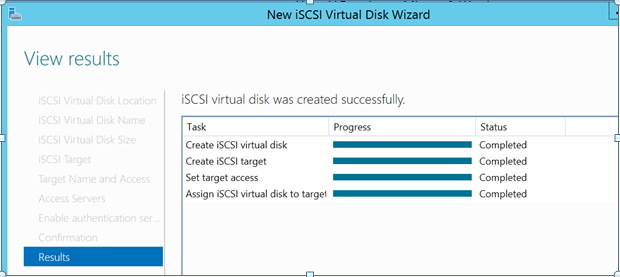

All done !

How to create host record in DNS

 How to create host record in DNS

Login to server

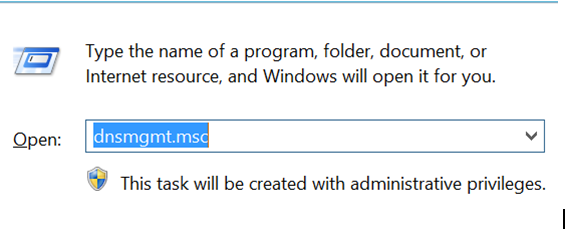

Open DNS using command dnsmgmt.msc

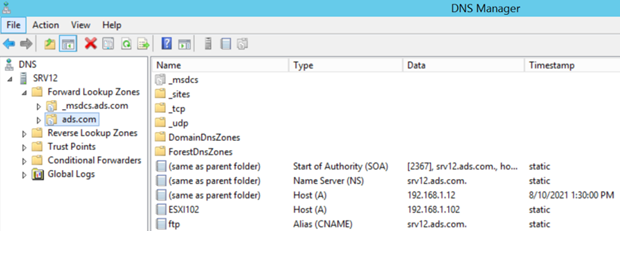

Click on server name -> expend and click on domain Name -> Right click and select new host

Enter HostName and IP address and check mark on Update associated PTR record

Static host record have been created for both Hyper V nodes.

Ping both servers with Name to check reachability
