What is Rule in SCOM - How Rule work in SCOM - Types of Rule in SCOM and How to Create Event Based Rule in SCOM 2019

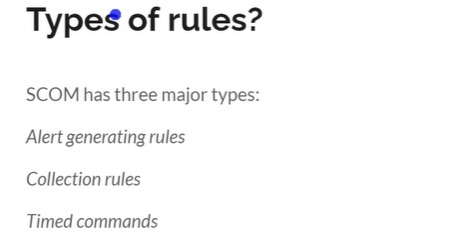

In this blog I will cover what is Rule in SCOM, how does it work? Types of Rule in SCOM and how to create event based rule in SCOM 2019

What is Rule in SCOM?

Rule, basically define what you want to monitor. They define the data to collect and describe how to process and respond to that data.

The rules exist to perform various functions in operations manager, although,

That rule does not affect the state of an object where a monitor does impact the state of an object.

Rules that generate alerts don’t auto close.

How do rules work?

For example, when you create an event based rule to configure and alert generating rule, as soon as you configure an event based rule.

Whenever an event is getting generated on the targeted object, that event is being captured by this rule and the condition, when the condition is met and alert data is being sent to the operations manager to trigger an alert in the operations console.

How to create a Rule in SCOM?

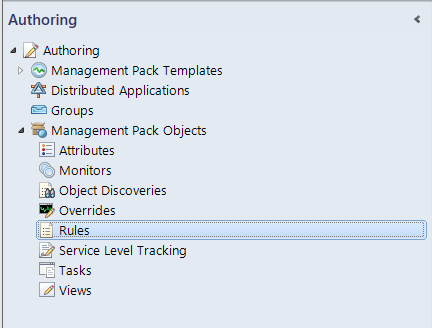

Under management pack -> click Rules

Right Click and select create a new rule

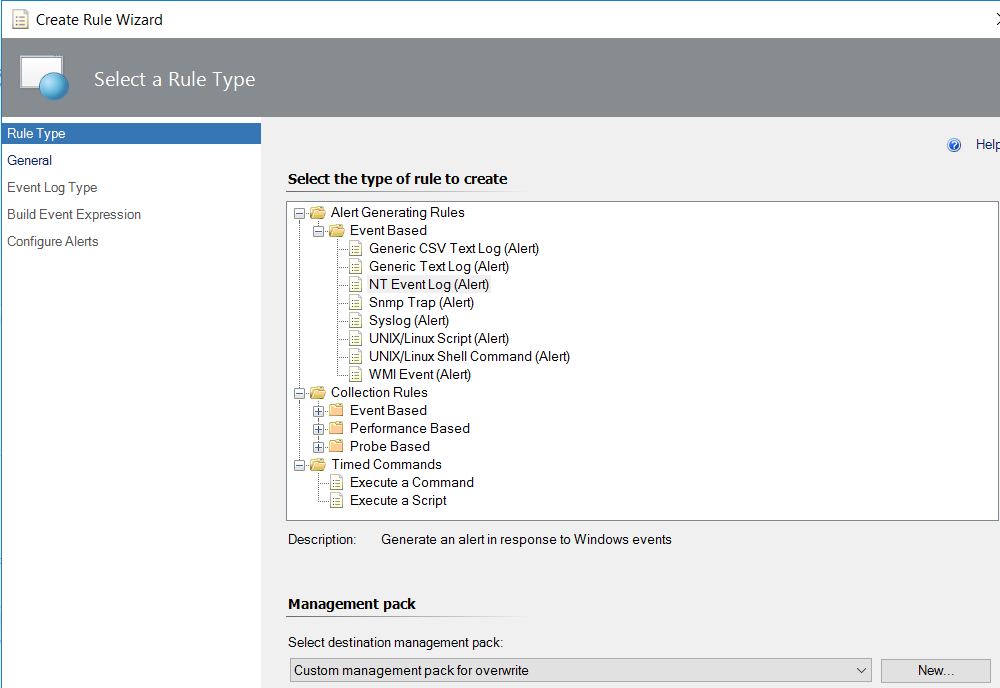

Here I am selecting event based alert

Select NT EventLog -> From Management pack list drop down and select Custom Management pack for overwrite.

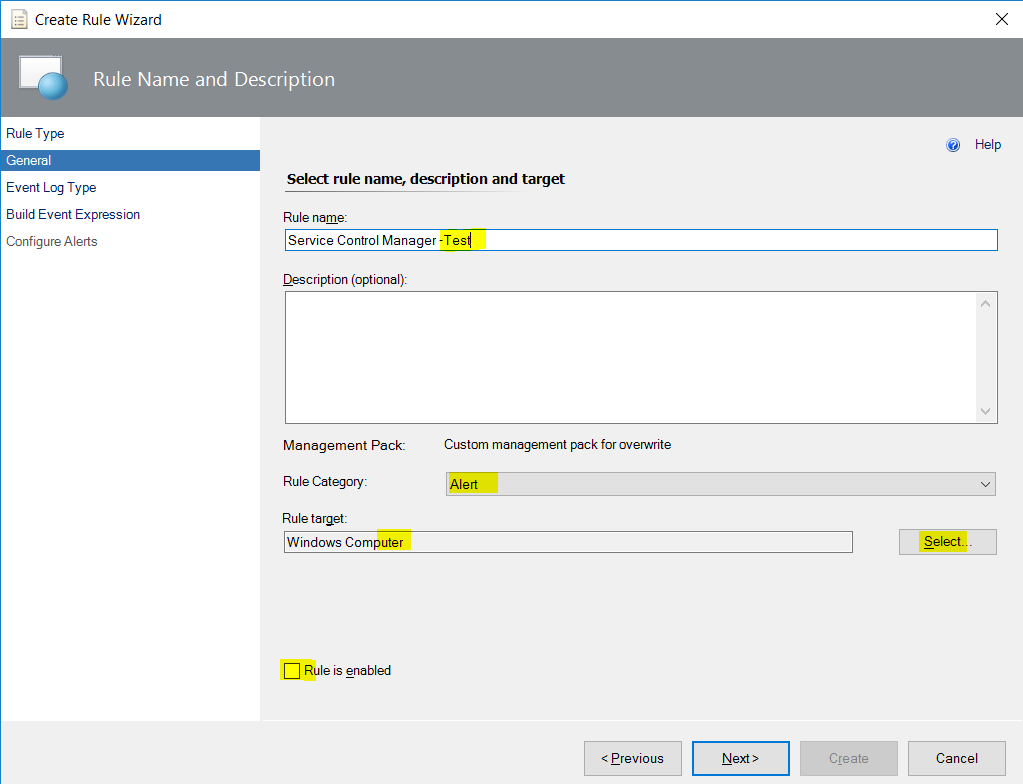

Rule Name-> Type Rule Name

Rule Category -> Drop down and select from the list

Rule Target -> Browse and Select from list – Here I am selecting Windows Computer

Uncheck Rule is enabled -> By default it will be enabled. -> Next

Log Name -> Browse and search for Computer where you want to apply this rule – Here I am applying on SCCM.ads.com

From Available event logs select System

Click Ok -> Next

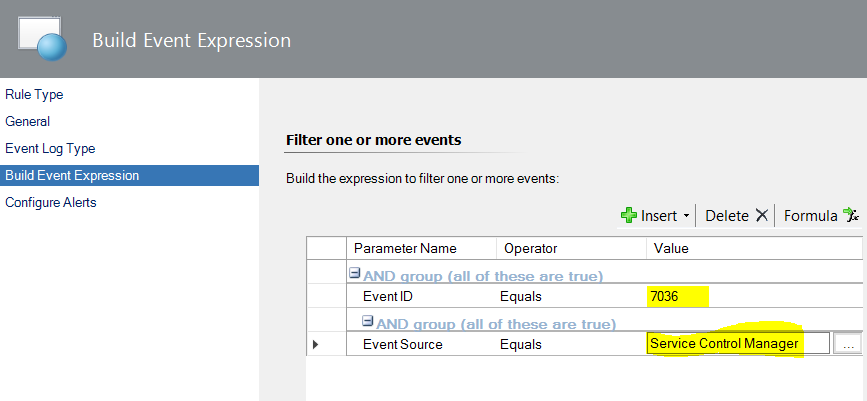

In EventID -> Enter Event number

In EventSource -> Enter Source

Note -: you can refer any system based event from any server like below

You can change Priority and Severity as per your requirement.

Click create button

Search the newly created rule Service Control Manager-test

By default newly created rules apply on all classes, you need to select the correct class that you had selected during creation.

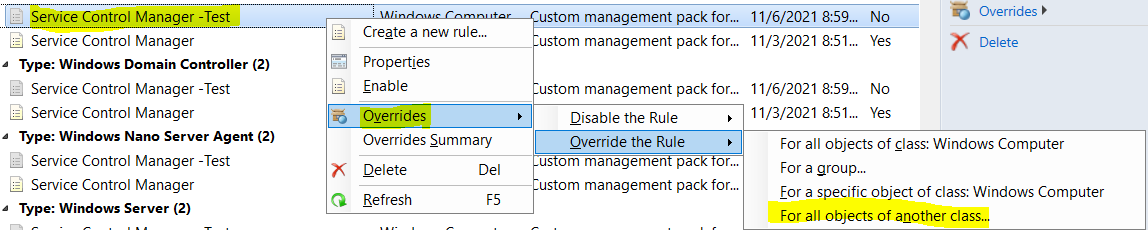

Right click and select Overrides -> Override the Rule -> For all objects of another class

Note-: you can select as per your requirement like single or group or all objects

Search Windows Computer

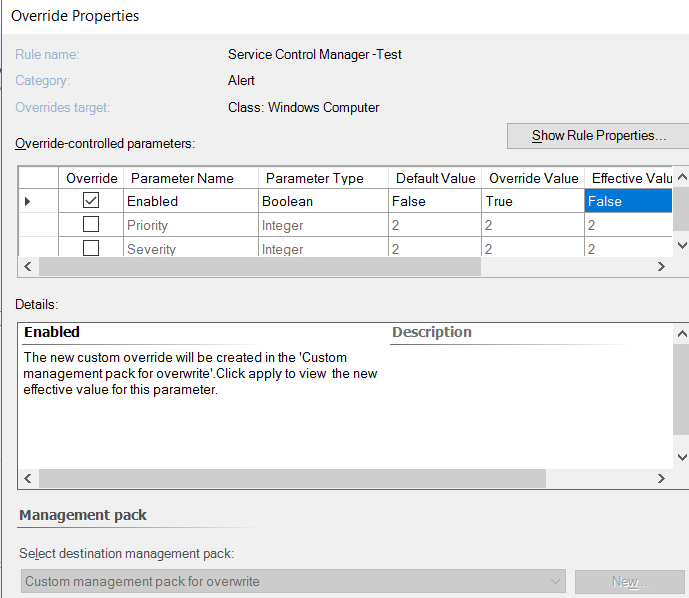

Check mark on Enabled Parameter Name and change the Override Value to True

Click Apply and Ok

Now Rule has created and enabled -: Go to Monitoring tab and see Active Alert

SCOM Monitor types - Create Unit Monitor for Monitor Windows Service availability in SCOM 2019

SCOM Monitoring

KPI in SCOM – There are four types of KPI in SCOM Processor, Memory, Days and Network.

Using these KPI you can understand or you can find out the overall health of the server.

What is Monitor in SCOM -: Basically monitor works on state based like healthy, warning and critical and measures the health of some aspects of managed objects.

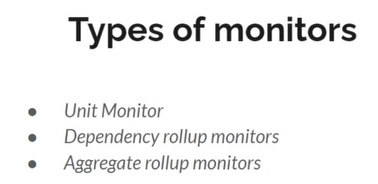

Unit Monitoring -: So that's basically the most common monitor which is being used in SCOM by your admins to create, monitoring for any specific object or any specific entity.

When we refer to monitors, we usually refer to unit monitors.

Only a unit monitor also measures some aspects of an application.

Dependency rollup monitors -: Dependency monitors let the health of one object be affected

by the health of another object. This allows for health rollup between specific related instances

of different classes.

Aggregate rollup Monitor-: Aggregate monitors group multiple monitors to provide a single

Health aggregated health state. This provides an organization to all of the monitors targeted at

a particular class and provides a consolidated health state for specific categories of operation.

How to create Unit based Monitor -:

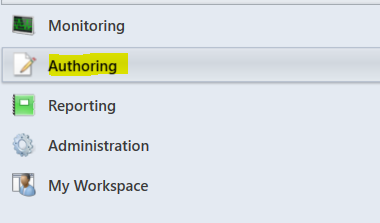

Click Authoring

Click Monitors -> Right click and select create Monitor -> Select Unit Monitor

You can select from list which types of monitoring do you want to create, here I am selecting Basic service Monitoring to create to monitor print spooler service

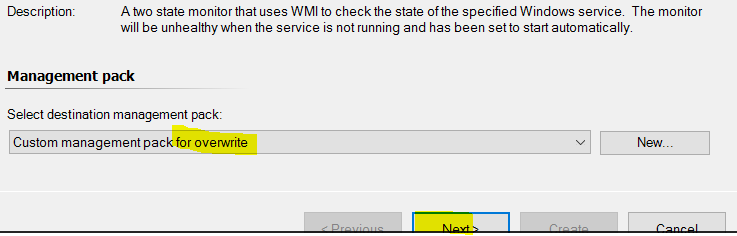

Drop down Management Pack and select Custom management pack for overwrite -> Click next

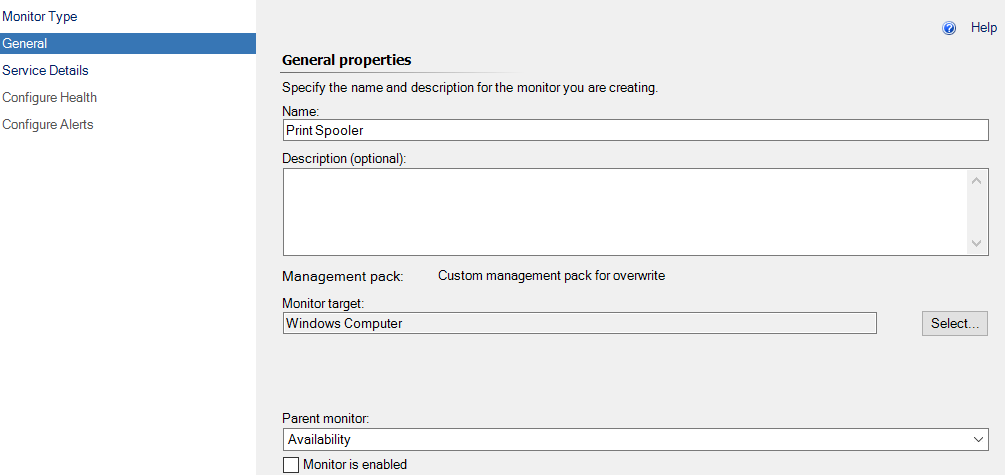

Give the Name for the monitor you are creating

From Monitor target -> click on select and select the appropriate target from the list.

Drop down and select from parent monitor -> select Availability (In my case it’s service availability)

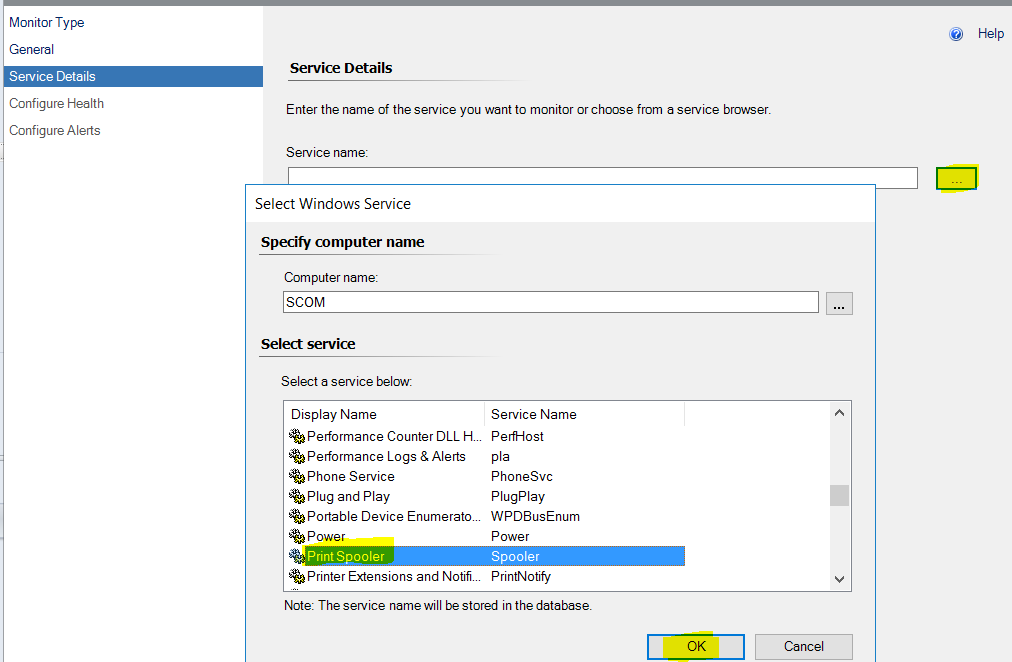

Click browse button for assign service name

Click Next

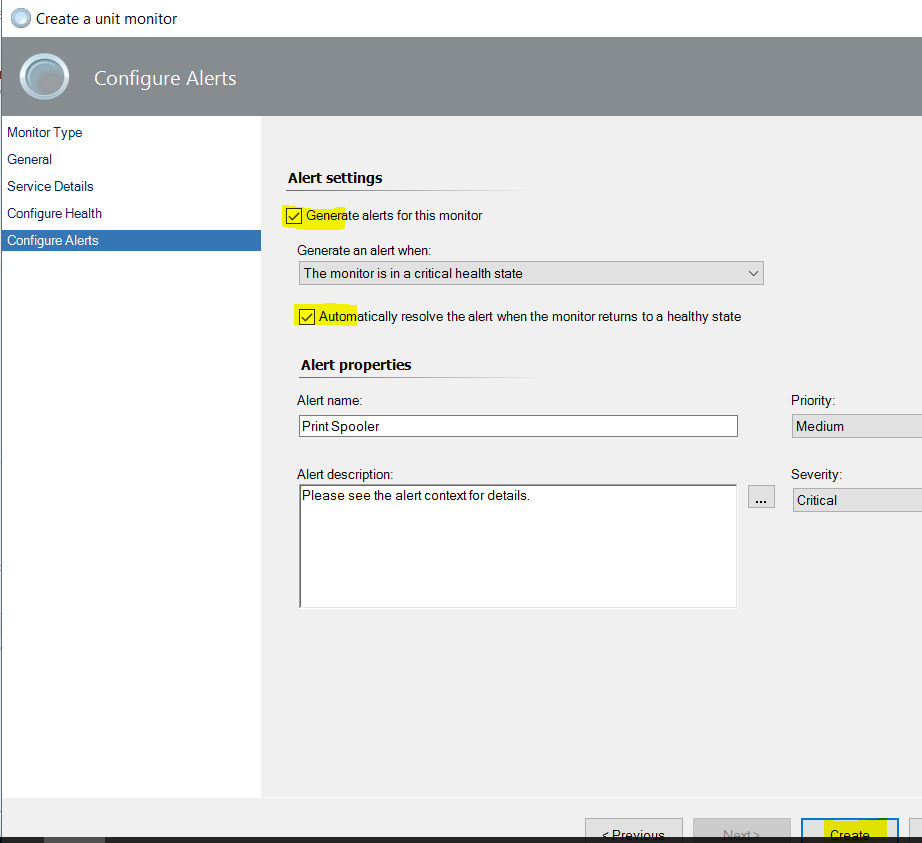

Check mark on Generate alerts for this monitor

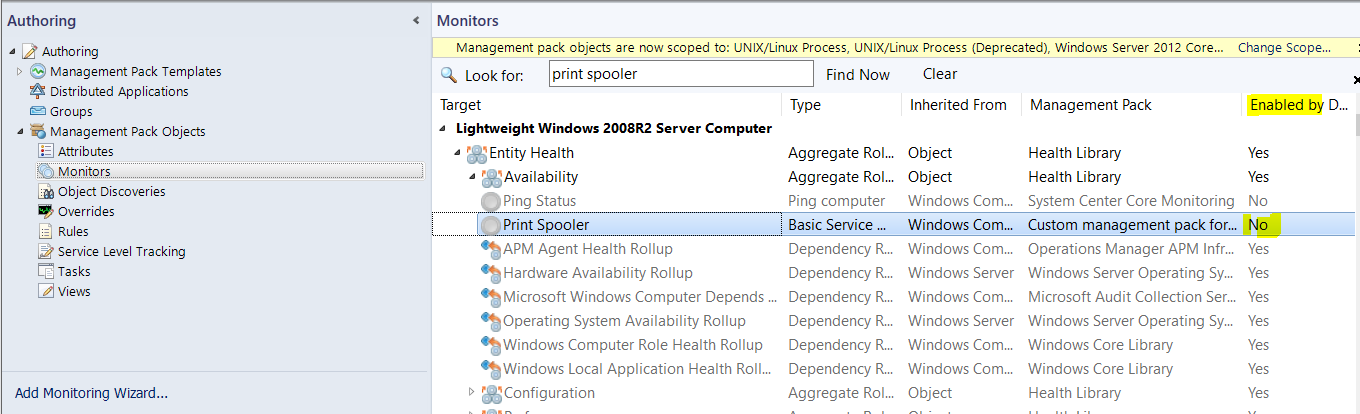

Then click Create -> Once created search for the created Unit monitor.

Select the newly created Unit monitor and click Enable

Select for the newly created Unit Monitor -> Right click and select Overrides -> Select Override the monitor ->

Click for all objects of another class -> below box will open -> check mark on Enabled and apply Ok.

Now Print Spooler Monitoring rule has created ->

Now login to any of the machine and stop Print Spooler service

Here I have logged in database.ads.com machine

Select the service from list -> Right click and stop the service

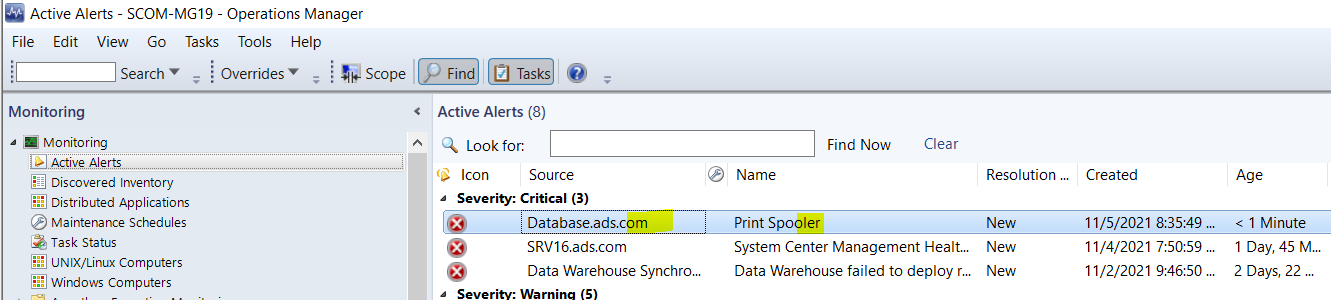

Now go to the Monitoring console in SCOM -> Click active alert and you will see one alert has triggered.

Now go back to Database.ads.com and start Print Spooler service.

Again go to the monitoring console and see active alert -> it should auto close and server status should reflect health.

All done!

Thank you.

Install Agent on Windows Using the Discovery Wizard in SCOM 2019

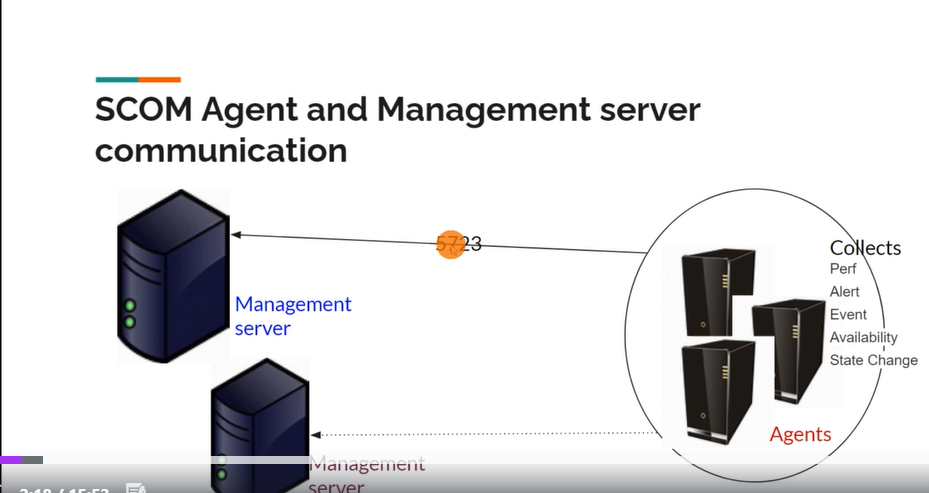

SCOM Agent-: An SCOM agent is a piece of software which we install on Windows and Linux client to collect alert, availability, performance and send these data to the SCOM management server for monitoring purpose and further troubleshooting.

How to install SCOM Agent from Operation manager Console

Connect with SCOM Operation Manager Console.

Click Administration -> Go to device management -> under device management click Agent Manage.

Right click on Agent Managed -> Click Discovery Wizard

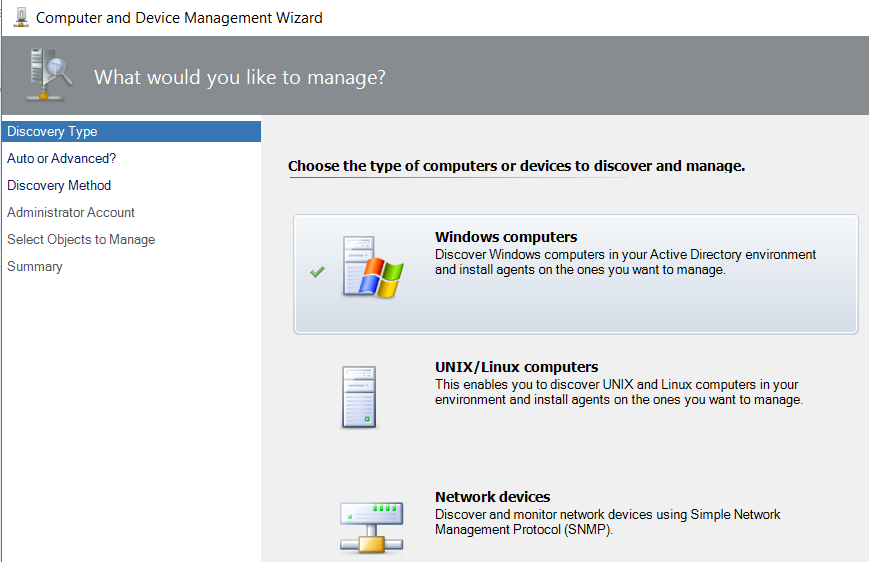

Click Windows Computers

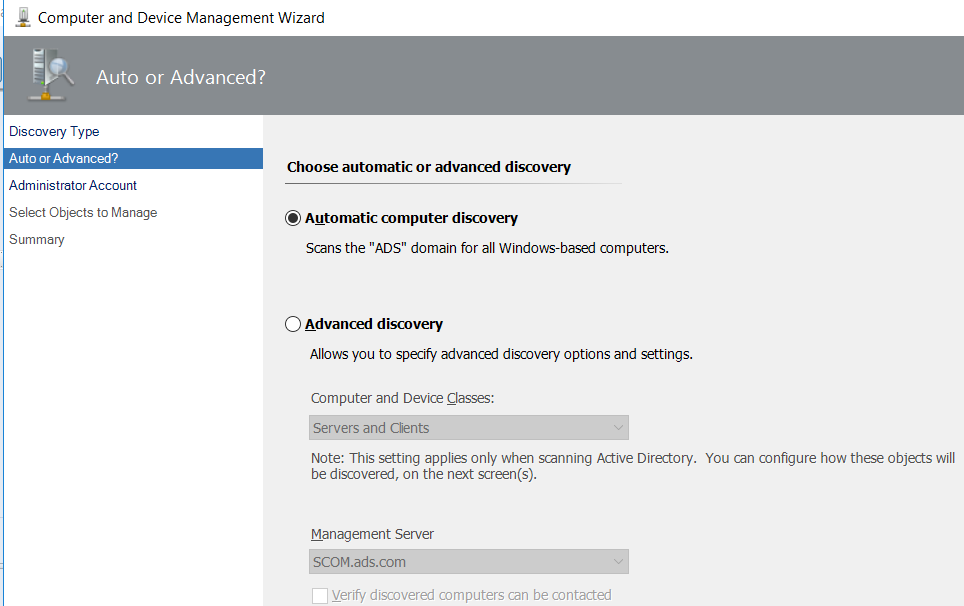

Select Automatic computer discovery -: If you are using AD integrated SCOM else select Advanced Discovery.

Click Next

Select Account for execute discovery

Click Discover

Once Discovery will complete you will see a list of the computers.

Select all or one of them and click and click next

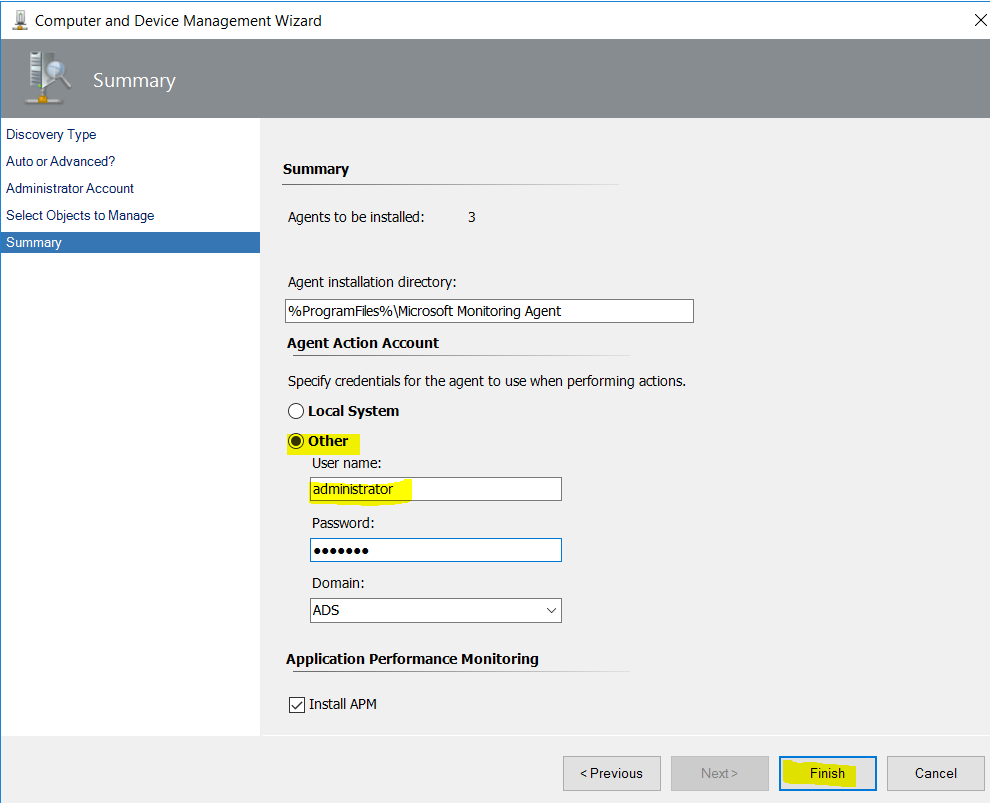

You can change Agent installation Directory.

Specify Credentials for Agent installation, Here I am selecting domain Administrator account

because I have added this account into the local admin group in all member servers.

Click finish

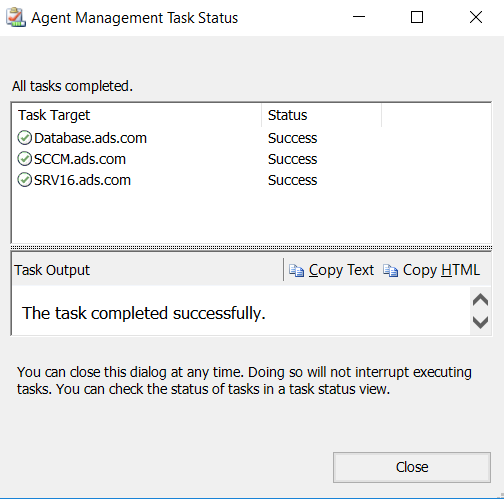

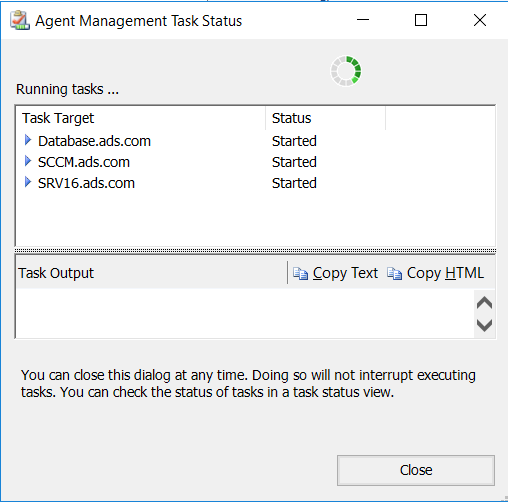

Now Agent push installation has started on all 3 servers.

Wait for 5-10 minutes and check the status

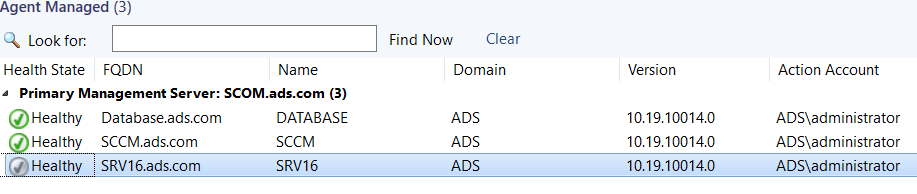

Now all 3 servers are reflecting under SCOM Agent Managed – Agent will take some time to replicate with SCOM server.

Now all the Agents are showing correctly in SCOM console under Agent Managed.

In Case if Agents are not reflecting properly under the Agent managed, just logged into to any of the failed server and open Event Viewer

Under Applications and services log click Operations Manager and check the log. In my case everything is fine so not giving any alert.

SCOM 2019 installation failing with error code, Product check for 2016RTMServer failed.

SCOM installation is failing with error code Product check for 2016RTMServer failed.

If you are getting an error then first you need to check the installed SQL version – it seems the correct version is not installed.

Note that SCOM 2019 only supports SQL Server 2019 with CU7 or later, it does not support the RTM version.
If you use CU7 or later, you also need to ensure that you use ODBC 17.3 or later, and MSOLEDBSQL 18.2 or later.

If you are running SQL 2019 CU0 like below, then you need to download the latest CU using the link below and update.

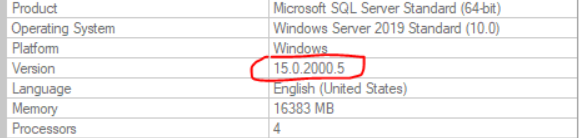

How check version -:

Open SQL management studio -> Connect to server ->

Right click -> properties
